FD25 HEAVY DUTY FRP FACED DOOR
- 1-3/4″ Thick Door with fiberglass faces with aluminum structure framing.
- Door constructed to meet heavy duty usage.
- Built in 1/8″ thick x 6″ tubular closer reinforcing.
- Extruded Tubular Aluminum Sub-Framing System.
- Built in strength using true mortise and tennon corner.
FD55 HEAVY WALL WIDE STILE FRP FACED DOOR
- 1-3/4″ Thick Door with fiberglass faces with aluminum structure framing.
- Tubular Aluminum Extrusions.
- Heavy Wall Wide Stile Internal Sub-Frame.
- Internal 6″ Head Rail; 5″ Hinge and Lock Stiles.
- Built in strength using true mortise and tennon corner joint assembly.
- 3/8″ Thru Spline Tie Rod Assembly.

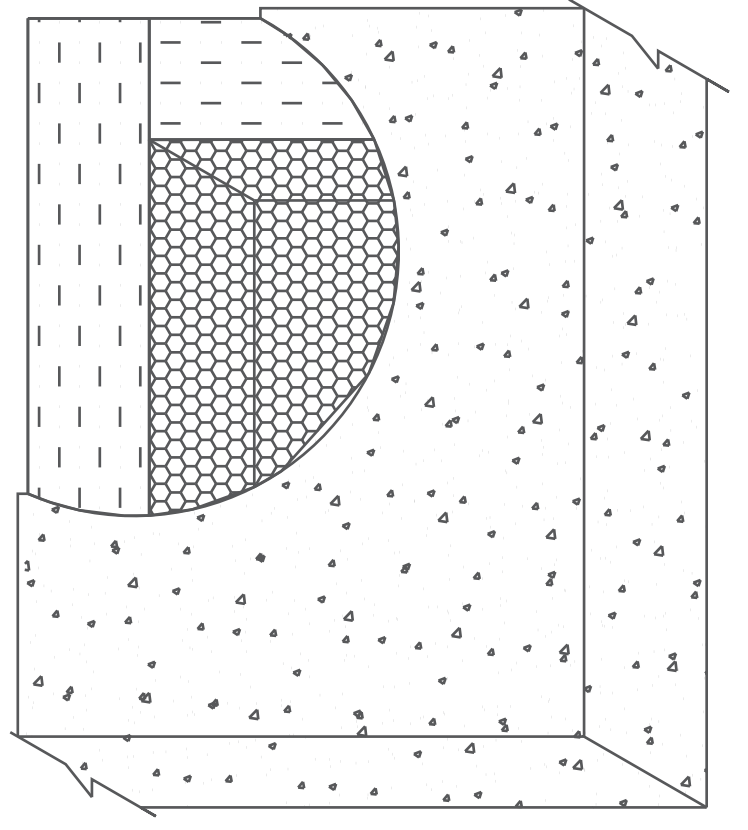

FR90 FRP FACED FIRE DOOR 🔥
- 1-3/4” FRP Door
- Durable long lasting FRP door face sheets
- 20-45-90 Minute Fire Ratings Available
- Outsourced Manufactured in compliance with Underwriters Laboratories
- Doors will bear the manufactures U.L. Testing Label
- Doors to be installed into re rated framing
- Pebble Embossed FRP Fiberglass Face Sheets
- Matching FRP Edges are Standard
- Optional Stainless Steel Edging for Exterior use
- 1-1/2” Solid Blocking Reinforcement for Surface Hardware
- Factory Machining for Mortised Hardware Preparations
- Optional Steel Vision Lites and Metal Louvers
- 90 Minute Mineral Cores
- 32lb. Density Partial Core Standard in all doors under 90 minute
- Standards: NFPA 80; ANSI-A208.1; ASTM-D1037; ASTM-E84
- Moisture Sealed Top and Bottom Rails
- Low Maintenance Materials
- FR20 = 20 Minute Rating
- FR45 = 45 Minute Rating
- FR90 = 90 Minute Rating
SR55 WIDE STILE AND RAIL DOOR
Door Features
- 1-3/4” Door Thickness
- Tubular Aluminum Extrusions
- 6063-T6 Architectural Grade Aluminum
- Typical 1/8” Thick Heavy Wall Construction
- Interlocking Snap Glazing Trim - Available for 1“ or 1/4” Glass or Panels
- Mortise and Tenon Joint with Tie Rod Assembly
- 5” Wide Stile Hinge and Lock sides
- 6 1/2“ Wide Stile Top Door Rail
- 6 1/2” Wide Stile Bottom Rail
- Optional 10” Bottom Rail
Optional 12” Mid-Panel
- 1-3/4” Thickness
- FRP Faced Mid- Panel
- Insulated Polystyrene Core
- Pebble Embossed Colored FRP Face Sheets
- Optional Recessed Pull
- Optional Aluminum Face Sheets
- Aluminum Face Sheets Smooth or Stucco Embossed
- 1/8” Hardboard Face Sheet Backing for Aluminum Faces
Color Options
- Class 1 - 7 Mil Anodized Aluminum
- 215 R1 Clear Satin - 313 Dark Bronze
- Optional Kynar Painted Colors
- Full Color Selection for FRP Face Sheets
Aluminum Framing
- FS - HEAVY WALL ALUMINUM FRAME SERIES
- FS24 ALUMINUM FRAMING
- FS25 ALUMINUM FRAMING
- FS26 ALUMINUM FRAMING
- FS28 ALUMINUM FRAMING
- FSR6 RETROFIT INSERT FRAME
Hardware
- FP62 RECESSED FLUSH PULL
- FP63 ADA GRIP – RECESSED FLUSH PULL
- ALUMINUM ASTRAGALS
- ALUMINUM GEAR HINGES
- ALUMINUM THRESHOLDS
